Wedge gate valve

Applicable Standards

Manufacturing and Acceptance: ASME B16.34 -API600

Butt-welded end size: ANSI B16.25

Flange size: ANSI B16.5

End to End: ANSI B16.10

Valves test: API 598

Introduction：Flange end size、End to End、manufacturing and acceptance can be supplied as customers' requirements.

※Size is not suitable for ANSI B16.10

Introduction

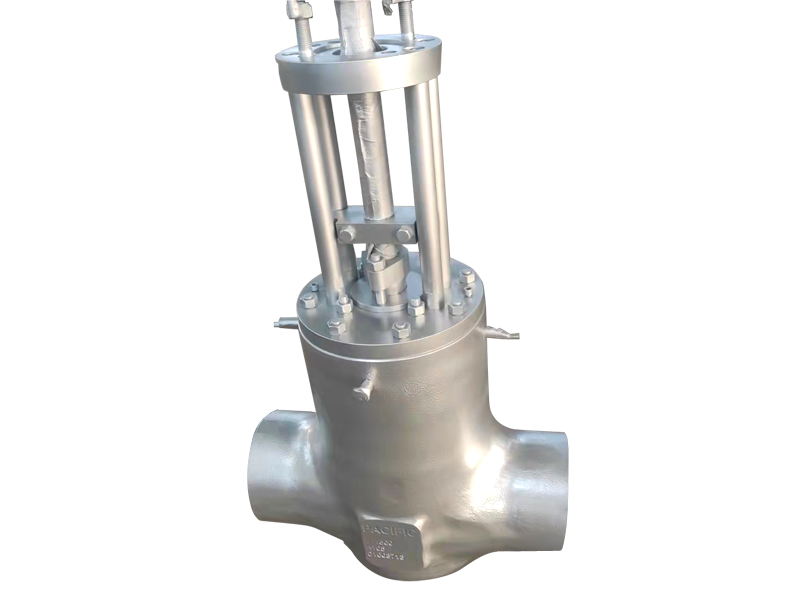

Pressure seal wedge gate valves are designed for pressure seal structure. Sealing will be enhanced with the pressure getting rising. They are generally applied to high temperature and high pressure field.

High-density graphites are used to in lieu of traditional soft iron gasket that is more suitable for high temperature and temperature changing frequently.

There is a cone-type back seat on the bonnet and it can provide reliable sealing for valve under entire open.

Hardness difference caused by different STL on the sealing face of disc and seat ring can improve the anti-scuffing, anti-adhesion properties.

Relief device can be used to provide pressure relief under over pressurization.

Shell Mat'ls:A105(WCB)  F11(WC6)  F22(WC9)  F91(C12A),etc.

Properties and Features

Pressure seal bonnet to resist high temperature and high pressure

Low pressure drop

Low wear between sealing surface, long lifetime

Simple wedge disc structure, reliable sealing

Anti-creep

Low maintenance cost, easy repairing
